下载libwebsockets
https://github.com/warmcat/libwebsockets/archive/v1.5-chrome47-firefox41.tar.gz
安装基础软件
yum install gcc-c++ yum install cmake yum install openssl-devel //mosquitto默认支持openssl
解压、编译、安装libwebsockets
tar zxvf libwebsockets-1.5-chrome47-firefox41.tar.gz cd libwebsockets-1.5-chrome47-firefox41 mkdir build cd build cmake .. make make install
安装mosquitto
yum install mosquitto
修改配置文件
mv /etc/mosquitto/mosquitto.conf.example /etc/mosquitto/mosquitto.conf
# ================================================================= # General configuration # ================================================================= # 客户端心跳的间隔时间 #retry_interval 20 # 系统状态的刷新时间 #sys_interval 10 # 系统资源的回收时间,0表示尽快处理 #store_clean_interval 10 # 服务进程的PID #pid_file /var/run/mosquitto.pid # 服务进程的系统用户 user root # 客户端心跳消息的最大并发数 #max_inflight_messages 10 # 客户端心跳消息缓存队列 #max_queued_messages 100 # 用于设置客户端长连接的过期时间,默认永不过期 #persistent_client_expiration # ================================================================= # Default listener # ================================================================= # 服务绑定的IP地址 #bind_address # 服务绑定的端口号 port 1883 listener 9001 protocol websockets # 允许的最大连接数,-1表示没有限制 #max_connections -1 # cafile:CA证书文件 # capath:CA证书目录 # certfile:PEM证书文件 # keyfile:PEM密钥文件 #cafile #capath #certfile #keyfile # 必须提供证书以保证数据安全性 #require_certificate false # 若require_certificate值为true,use_identity_as_username也必须为true #use_identity_as_username false # 启用PSK(Pre-shared-key)支持 #psk_hint # SSL/TSL加密算法,可以使用“openssl ciphers”命令获取 # as the output of that command. #ciphers # ================================================================= # Persistence # ================================================================= # 消息自动保存的间隔时间 #autosave_interval 1800 # 消息自动保存功能的开关 #autosave_on_changes false # 持久化功能的开关 persistence true # 持久化DB文件 #persistence_file mosquitto.db # 持久化DB文件目录 #persistence_location /var/lib/mosquitto/ # ================================================================= # Logging # ================================================================= # 4种日志模式:stdout、stderr、syslog、topic # none 则表示不记日志,此配置可以提升些许性能 log_dest none # 选择日志的级别(可设置多项) #log_type error #log_type warning #log_type notice #log_type information # 是否记录客户端连接信息 #connection_messages true # 是否记录日志时间 #log_timestamp true # ================================================================= # Security # ================================================================= # 客户端ID的前缀限制,可用于保证安全性 #clientid_prefixes # 允许匿名用户 allow_anonymous false # 用户/密码文件,默认格式:username:password password_file /etc/mosquitto/pwfile.example # PSK格式密码文件,默认格式:identity:key #psk_file # pattern write sensor/%u/data # ACL权限配置,常用语法如下: # 用户限制:user <username> # 话题限制:topic [read|write] <topic> # 正则限制:pattern write sensor/%u/data # 配置topic和用户 acl_file /etc/mosquitto/aclfile # ================================================================= # Bridges # ================================================================= # 允许服务之间使用“桥接”模式(可用于分布式部署) #connection <name> #address <host>[:<port>] #topic <topic> [[[out | in | both] qos-level] local-prefix remote-prefix] # 设置桥接的客户端ID #clientid # 桥接断开时,是否清除远程服务器中的消息 #cleansession false # 是否发布桥接的状态信息 #notifications true # 设置桥接模式下,消息将会发布到的话题地址 # $SYS/broker/connection/<clientid>/state #notification_topic # 设置桥接的keepalive数值 #keepalive_interval 60 # 桥接模式,目前有三种:automatic、lazy、once #start_type automatic # 桥接模式automatic的超时时间 #restart_timeout 30 # 桥接模式lazy的超时时间 #idle_timeout 60 # 桥接客户端的用户名 #username # 桥接客户端的密码 #password # bridge_cafile:桥接客户端的CA证书文件 # bridge_capath:桥接客户端的CA证书目录 # bridge_certfile:桥接客户端的PEM证书文件 # bridge_keyfile:桥接客户端的PEM密钥文件 #bridge_cafile #bridge_capath #bridge_certfile #bridge_keyfile
修改文件
mv /etc/mosquitto/aclfile.example /etc/mosquitto/aclfile
user test topic read test/# topic write test/# # This affects access control for clients with no username. topic read $SYS/# # This only affects clients with username "roger". user roger topic foo/bar # This affects all clients. pattern write $SYS/broker/connection/%c/state
配置用户名和密码
groupadd mosquitto useradd -g mosquitto mosquitto
添加启动用户(默认mosquitto用户启动)
groupadd mosquitto useradd -g mosquitto mosquitto

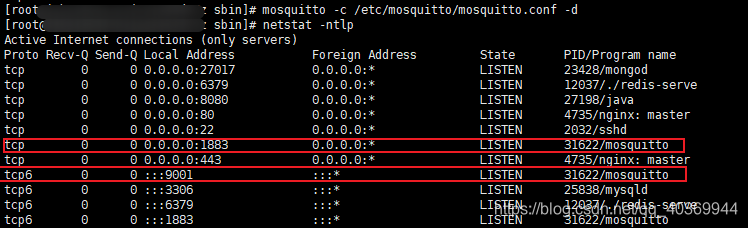

后台启动
mosquitto -c /etc/mosquitto/mosquitto.conf -d
如果报错
查看命令所在目录
find / -name mosquitto
复制命令到对应文件夹
cp mosquitto /usr/local/sbin/
