测试项目整体结构:
1.创建父项目（测试）

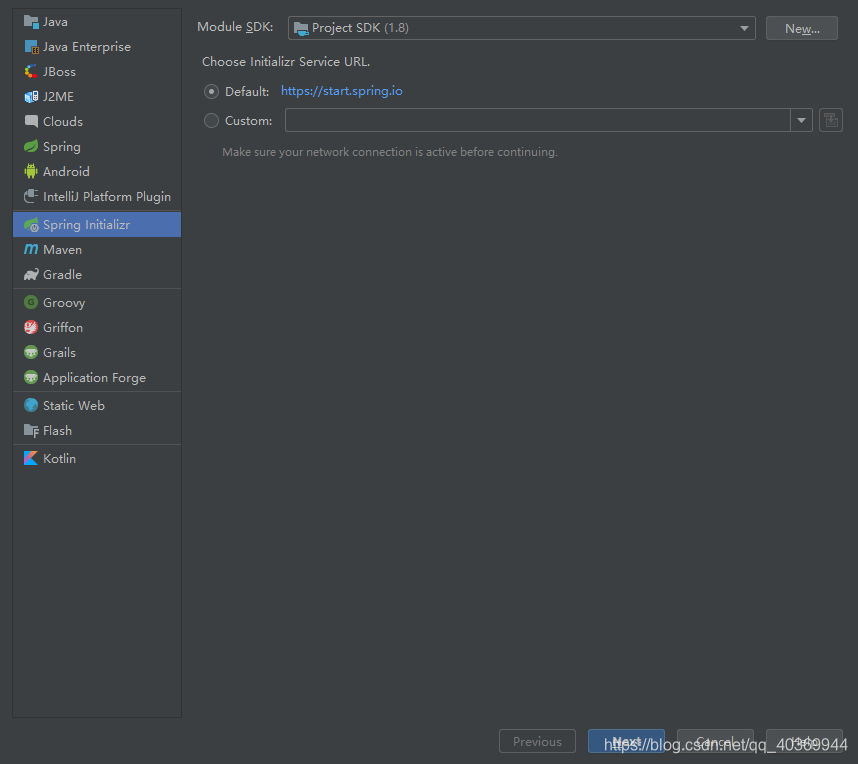

使用IDEA创建springboot父项目
下一步：

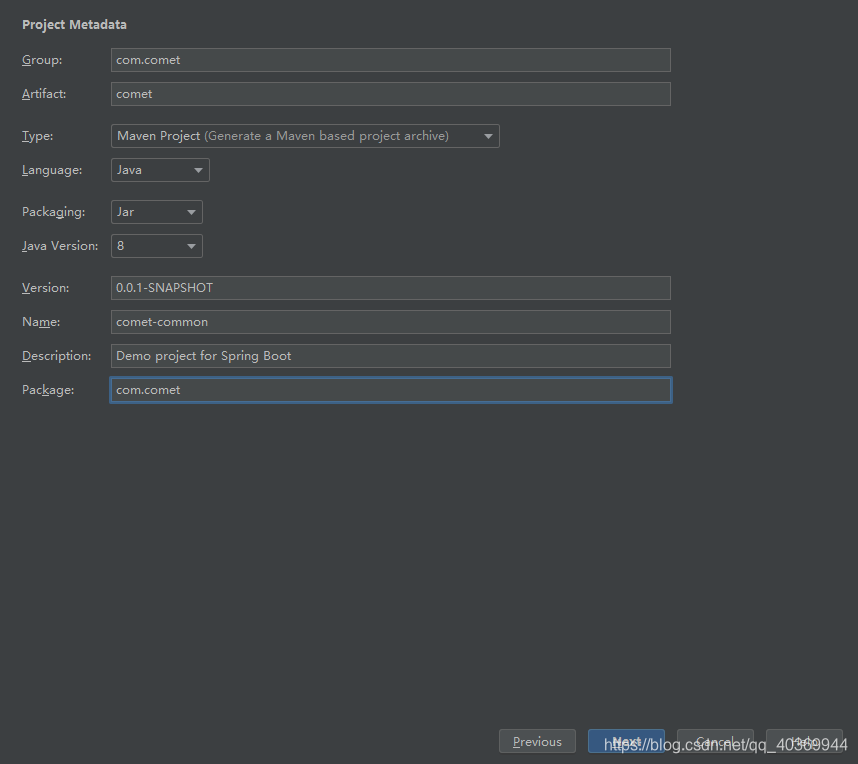

2.创建公共子模块（测试）
项目右键
2.1修改该子项目comet-common的pom.xml
其中依赖根据自己需求添加
<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <parent> <artifactId>comet</artifactId> <groupId>com.comet</groupId> <version>1.0.0</version> </parent> <modelVersion>4.0.0</modelVersion> <artifactId>comet-common</artifactId> <description> common通用工具 </description> <dependencies> <!-- Spring框架基本的核心工具 --> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-context-support</artifactId> </dependency> <!-- SpringWeb模块 --> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-web</artifactId> </dependency> <!--Shiro核心框架 --> <dependency> <groupId>org.apache.shiro</groupId> <artifactId>shiro-core</artifactId> </dependency> <!-- pagehelper 分页插件 --> <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper-spring-boot-starter</artifactId> </dependency> <!-- 自定义验证注解 --> <dependency> <groupId>javax.validation</groupId> <artifactId>validation-api</artifactId> </dependency> <!--常用工具类 --> <dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-lang3</artifactId> </dependency> <!-- JSON工具类 --> <dependency> <groupId>com.fasterxml.jackson.core</groupId> <artifactId>jackson-databind</artifactId> </dependency> <!-- 阿里JSON解析器 --> <dependency> <groupId>com.alibaba</groupId> <artifactId>fastjson</artifactId> </dependency> <!-- io常用工具类 --> <dependency> <groupId>commons-io</groupId> <artifactId>commons-io</artifactId> </dependency> <!-- 文件上传工具类 --> <dependency> <groupId>commons-fileupload</groupId> <artifactId>commons-fileupload</artifactId> </dependency> <!-- HTML解析器 --> <dependency> <groupId>org.jsoup</groupId> <artifactId>jsoup</artifactId> </dependency> <!-- excel工具 --> <dependency> <groupId>org.apache.poi</groupId> <artifactId>poi-ooxml</artifactId> </dependency> <!-- yml解析器 --> <dependency> <groupId>org.yaml</groupId> <artifactId>snakeyaml</artifactId> </dependency> <!-- servlet包 --> <dependency> <groupId>javax.servlet</groupId> <artifactId>javax.servlet-api</artifactId> </dependency> </dependencies></project>

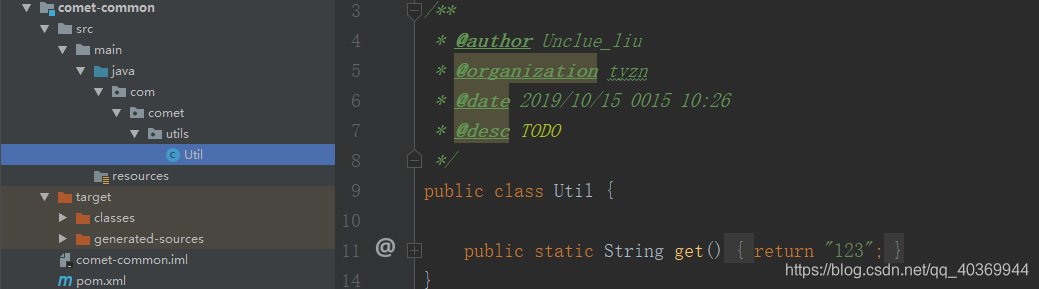

整体目录结构及测试类：
2.2修改父项目pom.xml
其中依赖根据自己需求添加
<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.comet</groupId>
<artifactId>comet</artifactId>
<packaging>pom</packaging>
<version>1.0.0</version>
<modules>
<module>comet-common</module>
</modules>
<name>comet</name>
<description>彗星管理系统</description>
<properties>
<comet.version>1.0.0</comet.version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
<java.version>1.8</java.version>
<shiro.version>1.4.1</shiro.version>
<thymeleaf.extras.shiro.version>2.0.0</thymeleaf.extras.shiro.version>
<mybatis.boot.version>1.3.2</mybatis.boot.version>
<druid.version>1.1.14</druid.version>
<bitwalker.version>1.19</bitwalker.version>
<kaptcha.version>2.3.2</kaptcha.version>
<swagger.version>2.9.2</swagger.version>
<pagehelper.boot.version>1.2.5</pagehelper.boot.version>
<fastjson.version>1.2.47</fastjson.version>
<oshi.version>3.9.1</oshi.version>
<commons.io.version>2.5</commons.io.version>
<commons.fileupload.version>1.3.3</commons.fileupload.version>
<jsoup.version>1.11.3</jsoup.version>
<poi.version>3.17</poi.version>
<velocity.version>1.7</velocity.version>
</properties>
<!-- 依赖声明 -->
<dependencyManagement>
<dependencies>
<!-- 公共模块-->
<dependency>
<groupId>com.comet</groupId>
<artifactId>comet-common</artifactId>
<version>${comet.version}</version>
</dependency>
<!-- SpringBoot的依赖配置-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-dependencies</artifactId>
<version>2.1.1.RELEASE</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<!--阿里数据库连接池 -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid-spring-boot-starter</artifactId>
<version>${druid.version}</version>
</dependency>
<!--验证码 -->
<dependency>
<groupId>com.github.penggle</groupId>
<artifactId>kaptcha</artifactId>
<version>${kaptcha.version}</version>
</dependency>
<!--Shiro核心框架 -->
<dependency>
<groupId>org.apache.shiro</groupId>
<artifactId>shiro-core</artifactId>
<version>${shiro.version}</version>
</dependency>
<!-- Shiro使用Srping框架 -->
<dependency>
<groupId>org.apache.shiro</groupId>
<artifactId>shiro-spring</artifactId>
<version>${shiro.version}</version>
</dependency>
<!-- Shiro使用EhCache缓存框架 -->
<dependency>
<groupId>org.apache.shiro</groupId>
<artifactId>shiro-ehcache</artifactId>
<version>${shiro.version}</version>
</dependency>
<!-- thymeleaf模板引擎和shiro框架的整合 -->
<dependency>
<groupId>com.github.theborakompanioni</groupId>
<artifactId>thymeleaf-extras-shiro</artifactId>
<version>${thymeleaf.extras.shiro.version}</version>
</dependency>
<!-- 解析客户端操作系统、浏览器等 -->
<dependency>
<groupId>eu.bitwalker</groupId>
<artifactId>UserAgentUtils</artifactId>
<version>${bitwalker.version}</version>
</dependency>
<!-- pagehelper 分页插件 -->
<dependency>
<groupId>com.github.pagehelper</groupId>
<artifactId>pagehelper-spring-boot-starter</artifactId>
<version>${pagehelper.boot.version}</version>
</dependency>
<!-- 获取系统信息 -->
<dependency>
<groupId>com.github.oshi</groupId>
<artifactId>oshi-core</artifactId>
<version>${oshi.version}</version>
</dependency>
<!-- swagger2-->
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger2</artifactId>
<version>${swagger.version}</version>
<exclusions>
<exclusion>
<groupId>io.swagger</groupId>
<artifactId>swagger-annotations</artifactId>
</exclusion>
<exclusion>
<groupId>io.swagger</groupId>
<artifactId>swagger-models</artifactId>
</exclusion>
</exclusions>
</dependency>
<!-- swagger2-UI-->
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger-ui</artifactId>
<version>${swagger.version}</version>
</dependency>
<!--io常用工具类 -->
<dependency>
<groupId>commons-io</groupId>
<artifactId>commons-io</artifactId>
<version>${commons.io.version}</version>
</dependency>
<!--文件上传工具类 -->
<dependency>
<groupId>commons-fileupload</groupId>
<artifactId>commons-fileupload</artifactId>
<version>${commons.fileupload.version}</version>
</dependency>
<!-- HTML解析器 -->
<dependency>
<groupId>org.jsoup</groupId>
<artifactId>jsoup</artifactId>
<version>${jsoup.version}</version>
</dependency>
<!-- excel工具 -->
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml</artifactId>
<version>${poi.version}</version>
</dependency>
<!--velocity代码生成使用模板 -->
<dependency>
<groupId>org.apache.velocity</groupId>
<artifactId>velocity</artifactId>
<version>${velocity.version}</version>
</dependency>
<!-- 阿里JSON解析器 -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>${fastjson.version}</version>
</dependency>
</dependencies>
</dependencyManagement>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<configuration>
<source>${java.version}</source>
<target>${java.version}</target>
<encoding>${project.build.sourceEncoding}</encoding>
</configuration>
</plugin>
</plugins>
</build></project>

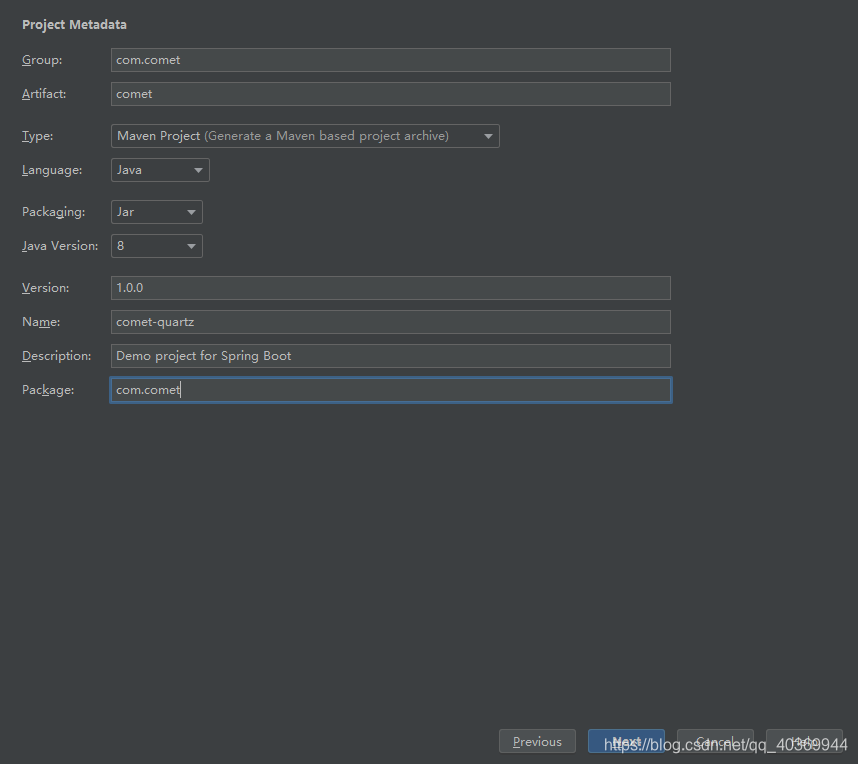

3.创建定时任务子项目（测试）
和创建公共模块同样步骤：
3.1修改comet-quartz项目pom.xml
<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>com.comet</groupId> <artifactId>comet</artifactId> <version>1.0.0</version> <relativePath/> </parent> <artifactId>comet-quartz</artifactId> <description> quartz定时任务</description> <dependencies> <dependency> <groupId>com.comet</groupId> <artifactId>comet-common</artifactId> </dependency> </dependencies></project>
3.2修改父项目pom.xml
做相应添加

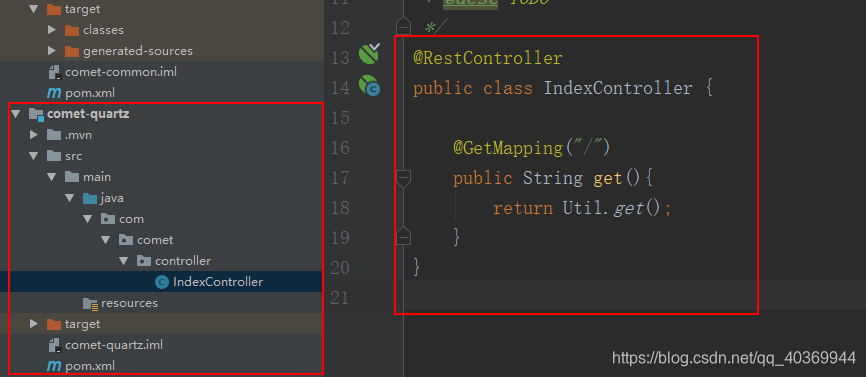

整体结构及测试类：

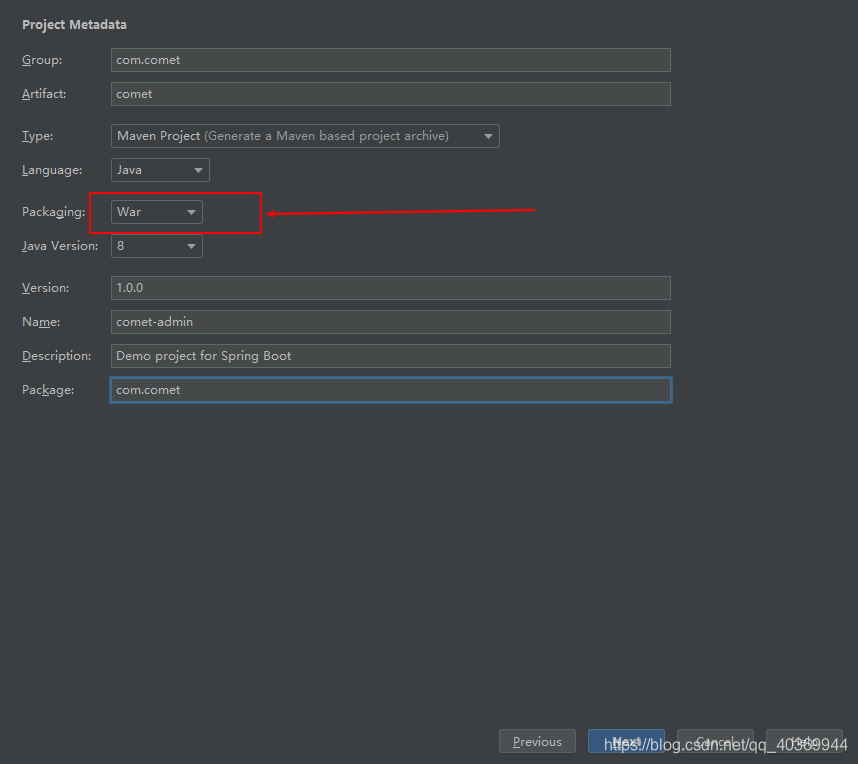

4.创建启动项目
步骤基本一致，注意以下几点：
4.1修改启动项目的pom.xml
<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>com.comet</groupId>
<artifactId>comet</artifactId>
<version>1.0.0</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<artifactId>comet-admin</artifactId>
<packaging>war</packaging>
<description>
web服务入口 </description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-tomcat</artifactId>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<!--定时任务-->
<dependency>
<groupId>com.comet</groupId>
<artifactId>comet-quartz</artifactId>
<version>${comet.version}</version>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
<configuration>
<fork>true</fork> <!-- 如果没有该配置，devtools不会生效 -->
</configuration>
<executions>
<execution>
<goals>
<goal>repackage</goal>
</goals>
</execution>
</executions>
</plugin>
</plugins>
</build></project>
4.2修改父项目pom.xml
做相应添加
4.3修改父项目application.yml
项目中application.yml只在启动项目存在
# 项目相关配置 comet: # 名称 name: comet # 版本 version: 1.0.0 # 版权年份 copyrightYear: 2019 # 开发环境配置 server: # 服务器的HTTP端口，默认为80 port: 80 servlet: # 应用的访问路径 context-path: / tomcat: # tomcat的URI编码 uri-encoding: UTF-8 # tomcat最大线程数，默认为200 max-threads: 800 # Tomcat启动初始化的线程数，默认值25 min-spare-threads: 30

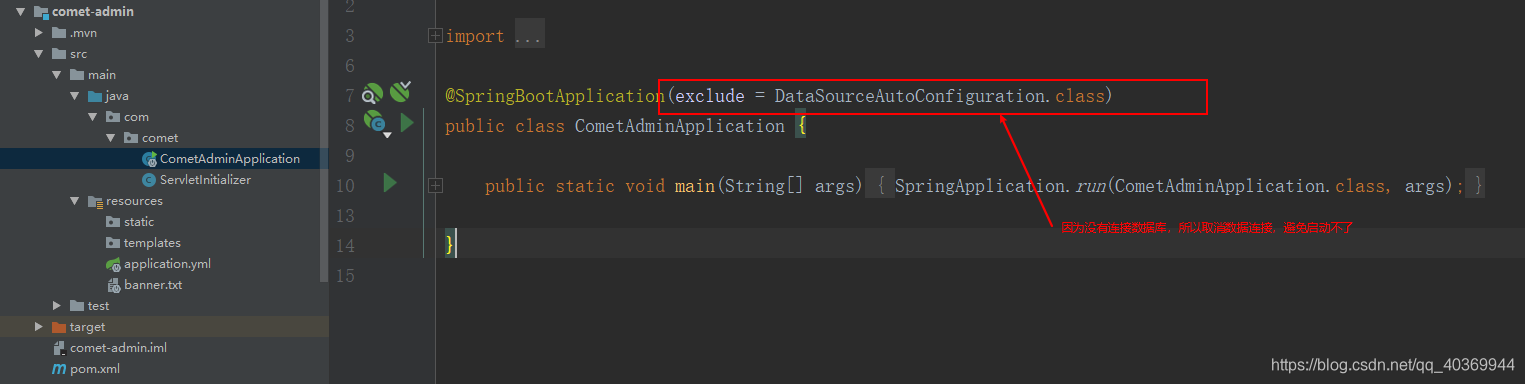

4.4启动项目整体结构
图中标注为在启动类上取消数据源自动配置，避免启动时报错，因为没有配置数据源

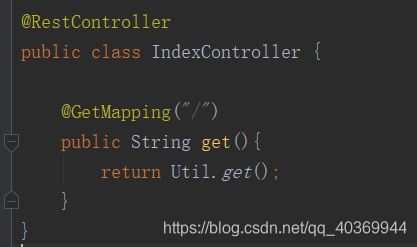

5.运行测试
运行：comet-admin
结果：
