SSM整合（Spring+Spring MVC+Mybatis）

绿林寻猫
绿林寻猫
2021-12-08 / 0 评论 / 93 阅读 / 正在检测是否收录...

最近有空所以把以前做项目的框架做个简单的整合

1.创建Maven项目，导入依赖

<dependencies>

    <!--单元测试依赖-->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
      <scope>test</scope>
    </dependency>

    <!--Servlet依赖-->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>4.0.0</version>
      <scope>provided</scope>
    </dependency>
    <!--jstl依赖-->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>
    <!--mysql数据库驱动依赖-->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.38</version>
    </dependency>

    <!--c3p0依赖-->
    <dependency>
      <groupId>com.mchange</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.5.2</version>
    </dependency>

    <!--spring-webmvc依赖-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>5.0.8.RELEASE</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>5.0.8.RELEASE</version>
    </dependency>

    <!--mybatis依赖-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.4.6</version>
    </dependency>

    <!--mybatis-spring依赖-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.2</version>
    </dependency>

    <!-- jedis （一个redis client端的jar）-->
    <dependency>
      <groupId>redis.clients</groupId>
      <artifactId>jedis</artifactId>
      <version>2.9.0</version>
    </dependency>

    <!--fastjson依赖-->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>fastjson</artifactId>
      <version>1.2.7</version>
    </dependency>

  </dependencies>

 <build>
    <finalName>ssm_redis</finalName>
    <resources>
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.xml</include>
        </includes>
      </resource>
    </resources>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.0.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.7.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.20.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
      </plugins>
    </pluginManagement>
  </build>
</project>

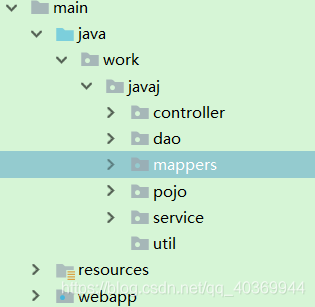

2.根据个人习惯创建包



3.在resources中创建db.properties

db.driver=com.mysql.jdbc.Driver
db.url=jdbc:mysql://127.0.0.1:3306/Bloggingplatform?characterEncoding=utf-8&allowMultiQueries=true
db.user=root
db.password=@838061522@ly
#定义初始连接数
initPoolSize=3
#定义最大连接数
maxPoolSizes=30



4.在resources中创建spring.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
                           http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
                           http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
                           http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
                           http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">


    <!--自动扫描：自动扫描com.heyang.ssm包下所有类的注解-->
    <context:component-scan base-package="work.javaj"/>

    <!--加载db.properties-->
    <context:property-placeholder location="classpath:db.properties"></context:property-placeholder>

    <!--配置数据源 从c3p0-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${db.driver}"></property>
        <property name="jdbcUrl" value="${db.url}"></property>
        <property name="user" value="${db.user}"></property>
        <property name="password" value="${db.password}"></property>
        <property name="initialPoolSize" value="${initPoolSize}"></property>
        <property name="maxPoolSize" value="${maxPoolSizes}"></property>
    </bean>

    <!--配置SqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--加载数据源-->
        <property name="dataSource" ref="dataSource"></property>
        <!--加载MyBatis配置文件-->
        <!--<property name="configLocation" value="classpath:mybatis-Config.xml"></property>-->
        <!--加载所有映射文件-->
        <property name="mapperLocations" value="classpath:work/javaj/mappers/*.xml"></property>
        <!--typeAliasesPackage对应实体类所在的包，这个时候会自动取包名作为别名-->
        <property name="typeAliasesPackage" value="work.javaj.pojo"></property>
    </bean>


    <!--配置Dao层：spring注入这个bean-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--将sqlSessionFactory注入com.zking.dao包的类中，dao包中的类直接使用sqlSessionFactory-->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"></property>
        <property name="basePackage" value="work.javaj.dao"></property>
    </bean>


    <!-- 事务管理 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"></property>
    </bean>
    <tx:annotation-driven transaction-manager="transactionManager" />
    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <tx:attributes>
            <tx:method name="query*" propagation="REQUIRED" read-only="true" />
            <tx:method name="expand*" propagation="REQUIRED" read-only="true" />
            <tx:method name="save*" propagation="REQUIRED"  rollback-for="Exception"/>
            <tx:method name="insert*" propagation="REQUIRED"  rollback-for="Exception" />
            <tx:method name="delete*" propagation="REQUIRED"  rollback-for="Exception"/>
            <tx:method name="update*" propagation="REQUIRED"  rollback-for="Exception"/>
        </tx:attributes>
    </tx:advice>
</beans>



5.在pojo中创建实体类

public class Article implements Serializable{
	private static final long serialVersionUID = 1L;
	private String aId; 	//文章id
	private String aTitle; 	//标题
	private String aContent; 	//内容
	private String aTitleImg; 	//标题图片
	private String aTime; 	//时间
	private Integer aReadingQuantity; 	//阅读量
	private Integer aCommentnum; 	//评论数
	private Programa programa;//栏目id 外键
	private String label;//标签
	private Administrator administrator;//管理员id 外键
	private Integer aStatusBar; 	//状态 0不公开 1公开
	private String aAbstract;//摘要
//此处省略setter和getter
}



6.创建dao接口  ArticleDao


public interface ArticleDao {
    /*
     * @Author Uncle Liu
     * @Description //TODO 根据id查询Article
     * @Date 18:36 2018/10/30
     **/
    Article getArticleById(String aId);

}



7.创建service接口及实现类

7.1 创建ArticleService

public interface ArticleService {
    /*
     * @Author Uncle Liu
     * @Description //TODO 根据id查询Article
     * @Date 18:36 2018/10/30
     **/
    Article getArticleById(String aId);

}



7.2 创建ArticleImpl

@Service("articleImpl")
public class ArticleImpl implements ArticleService {

    @Resource
    private ArticleDao articleDao;

    @Override
    public Article getArticleById(String aId) {
        return articleDao.getArticleById(aId);
    }
}



8.在mappers中创建ArticleMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="work.javaj.dao.ArticleDao">
    <!--映射Article对象的resultMap（结果映射集）-->
    <resultMap id="articleMapper" type="work.javaj.pojo.Article">
        <id property="aId" column="a_id" />
        <result property="aTitle" column="a_title" />
        <result property="aContent" column="a_content" />
        <result property="aTitleImg" column="a_title_img" />
        <result property="aTime" column="a_time" />
        <result property="aReadingQuantity" column="a_reading_quantity" />
        <result property="aCommentnum" column="a_commentnum" />
        <result property="aStatusBar" column="a_status_bar" />
        <result property="label" column="label" />
        <result property="aAbstract" column="a_abstract" />
        <!--<association property="administrator" column="u_id" select="work.javaj.dao.AdministratorDao.getAdministratorById"/>-->
        <!--<association property="programa" column="p_id" select="work.javaj.dao.ProgramaDao.getProgramaById"/>-->
    </resultMap>

    <!--根据id查询-->
     <select id="getArticleById" parameterType="String" resultMap="articleMapper">
          select a_abstract,a_id,a_title,a_content,a_title_img,a_time,a_reading_quantity,a_commentnum,p_id,label,a_status_bar,u_id from  article where a_id=#{aId}
     </select>

</mapper>



9.配置web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         version="3.0">
  <display-name>Archetype Created Web Application</display-name>
  <welcome-file-list>
    <welcome-file>index.jsp</welcome-file>
  </welcome-file-list>

  <!-- Spring整合mybatis的配置文件 -->
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:spring.xml</param-value>
  </context-param>

  <!--配置编码过滤器 防止乱码-->
  <filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>encodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>

  <!--spring mvc前端控制器-->
  <servlet>
    <servlet-name>SpringMVC</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:spring.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>SpringMVC</servlet-name>
    <url-pattern>*.do</url-pattern>
  </servlet-mapping>


  <!--spring监听器-->
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>



</web-app>



10.创建Controller

@Controller
@RequestMapping("/index")
public class indexController {

    @Resource
    private ArticleService articleService;

    @RequestMapping("/a")
    @ResponseBody
    public String index(){
        //根据id查询
        Article article = articleService.getArticleById("91cf33d3-2b96-45e8-a66d-ffd7fabb8de8");
        System.out.println(article);
        return "Hello";
    }
}



11.创建index.jsp

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>Title</title>
</head>
<body>
<a href="/index/a.do">你好</a>
</body>
</html>



12.测试

12.1 运行结果：

12.2 控制台输出结果：

12.3 页面显示
